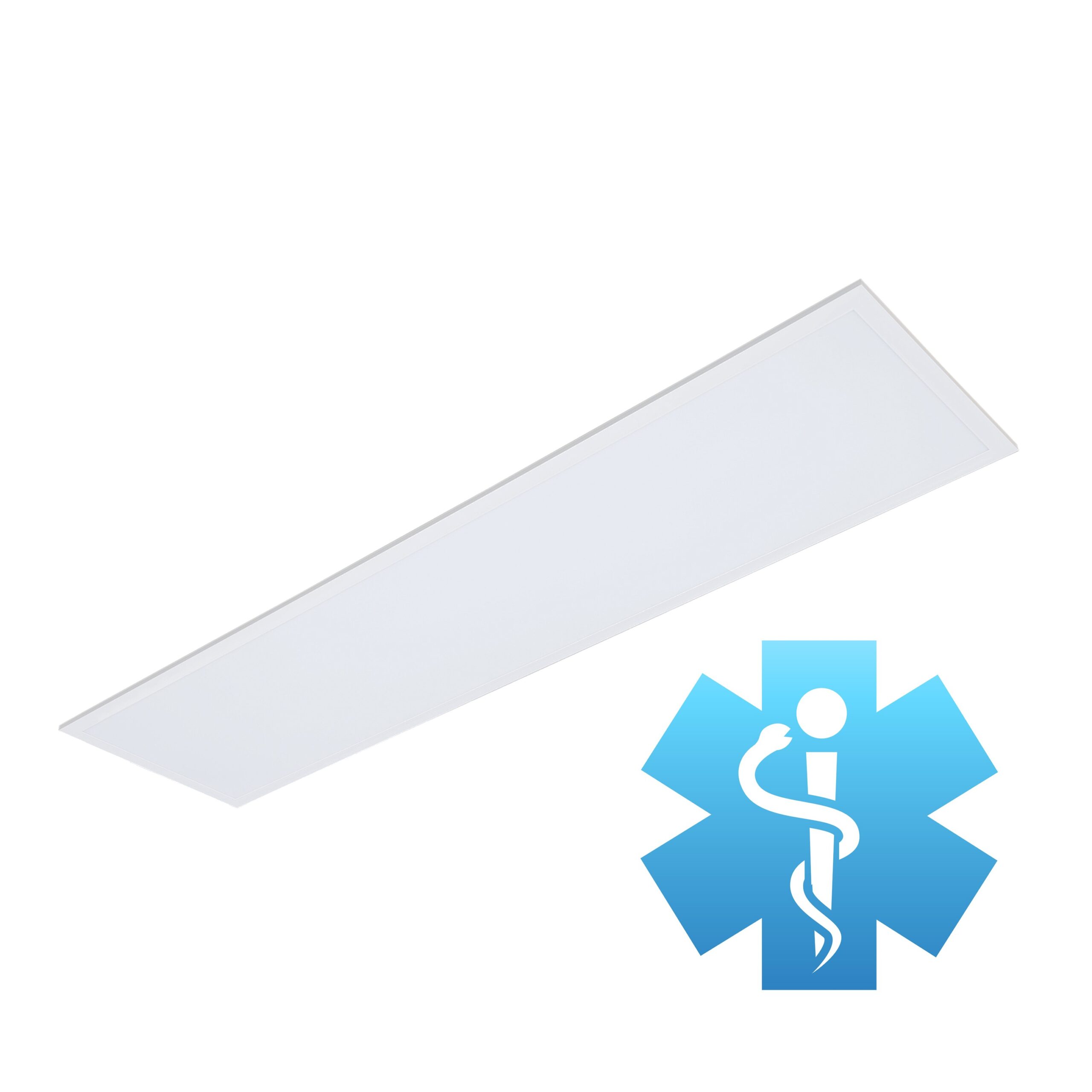

300×1200 LED T-Bar Panel Light
The S-Tech 300×1200 LED T-Bar Panel Light (PL-30120-3C) is a complete replacement for existing T5 or T8 T-Bar troffer fittings, ideal for retrofit or new installations. Supplied with a flicker-free LED driver and Australian plug, it is ready for plug-and-play installation.
Designed with a backlit panel, it provides uniform illumination and long-lasting performance. With 3CCT colour selection (3000K/4000K/5000K), you can adjust the colour temperature to suit any environment. The panel offers a 120° beam angle, white trim, and IP50-rated housing.
For advanced lighting requirements, optional Triac or DALI dimming drivers are available. Additionally, this product is offered in Low Glare UGR<19 for reduced eye strain, or a Medical Cyanosis model suitable for medical applications.
Product Features
-
Model: PL-30120-3C
-
Power: 33W
-
Colour Temperature: 3CCT – 3000K / 4000K / 5000K selectable
-
Backlit design for even illumination
-
Flicker-free LED driver
-
Beam Angle: 120°
-
Trim: White
-
Input: Supplied with Australian plug
-
Optional Triac or DALI dimming drivers
-
IP50 rated housing
-
Dimensions: H295 × W1195 × D25 mm
-
Weight: 1.6 kg
-
Low Glare UGR<19 model available
-
Medical Cyanosis model available
Optional Items:
Surface Mount Frame Kit – Model: PL-SMFK-30120
Recessed Ceiling Frame Kit (Bulk Pack 10pcs) – Welded Frame – Model: PL-RCF-30210
Quickfit Recessed Ceiling Frame Kit – Model: PL-RCFK-312
Dimmable Driver (suits Trailing, LED or Universal Dimmers) – Model: PL-DPS-312/66
Dali Dimmable Driver (works on Dali System) – Model: PL-DPS-36W-DALI
Emergency Pack to suit 300×1200 or 600×600 T-Bar Panels – Model: PL-EP-33V4
Replacement Driver (non-dimmable) – Model: PL-PWR-312/66
