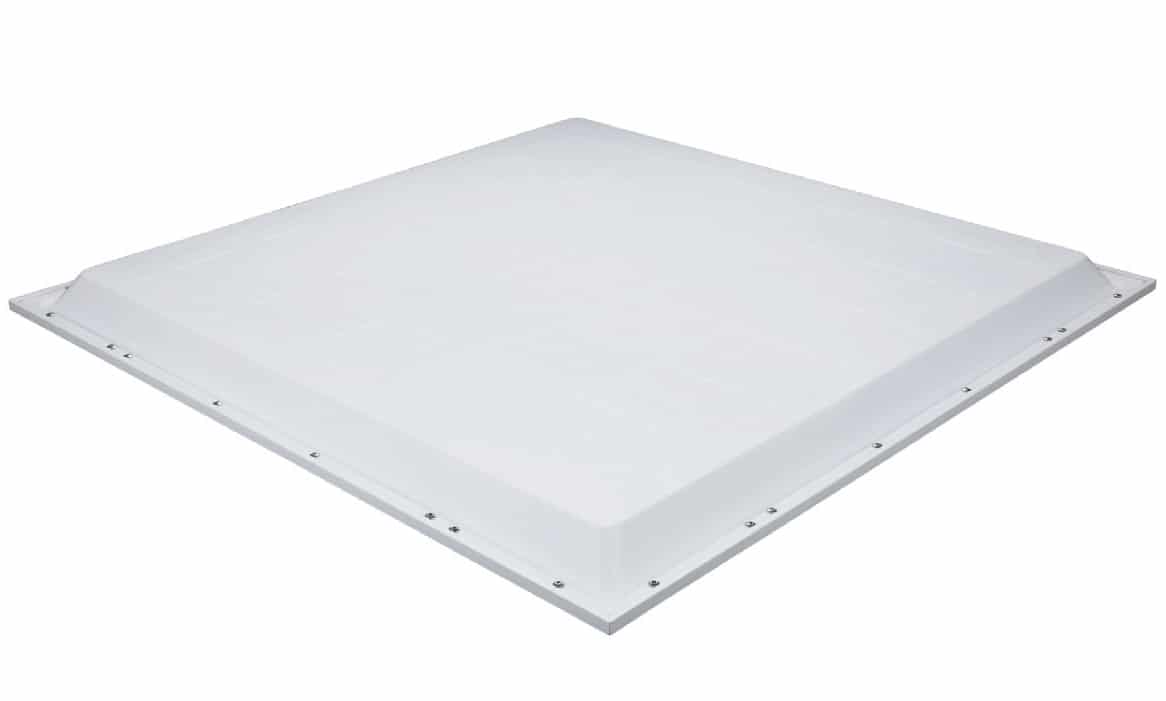

36w T-Bar Backlit Panel Light – 6×6

36w T-Bar Backlit Panel Light – 600 x 600mm – 3CCT

S-tech’s LED panel lights are a complete fitting replacement for existing T5 or T8 T-Bar Troffer Fittings, or perfect for new installations. Our panel light is supplied together with our own LED Driver with an Australian plug, ready to install.  The LED T-Bar Panel can also be dimmed via Dali or a Triac dimmer with the purchase of an optional dimmable driver.

Model: PL-6060-33V4

Features:

  • Only 36w
  • S-Tech Colour Select – 3 Colour Selectable (3000K / 4000K / 5000K)
  • Trim Colour: White
  • 3240~3600lm
  • Backlit design for long operating life and performance
  • 120 deg beam angle
  • CRI > 80%
  • Mounting: Suspended ceiling mount, pendant chain, suspension rod or suspension hook
  • Dimension (mm): L595 x W595 x H30
  • Optional dimmable driver available
  • Optional surface mount frame kit and suspension kits available

Optional Items:

Panel Light Surface Mount Frame Kit – Model: PL-SMFK-6060

Panel Light Recessed Ceiling Frame (pack of 10 only) – Model: PL-RCF-6060

Panel Light Suspension Hanging Kit – Model: PL-SHC

Panel Light Triac Dimming Driver – Model: PL-DPS-33V4

Panel Light Dali Dimming Driver – Model: PL-DPS-33W-DALI

VEET and IPART Approved

Model PL-6060-33V4
Type Backlit
Power 36w
Power Requirement 200~240VAC
Colour Temp 3CCT (3000K-4000K-5000K)
Lumens 3240~3600lm
Beam Angle 120°
Trim Colour White
Dimensions 595 x 595 x 30mm
Carton Size 5pcs
