LED Linear Light Series – Connections

S-tech’s Linear Light Series have a number of connections to allow for shapes.  Used together with the standard lengths, the connections have their own LED’s to ensure you get a seamless look.

Our LED Linear Light connections are available in either black or white trim and is supplied as standard with our colour select switch to choose from 3000K, 4000K or 5000K colour temperatures.

Black Models

Model (X): LL-CON-X-B

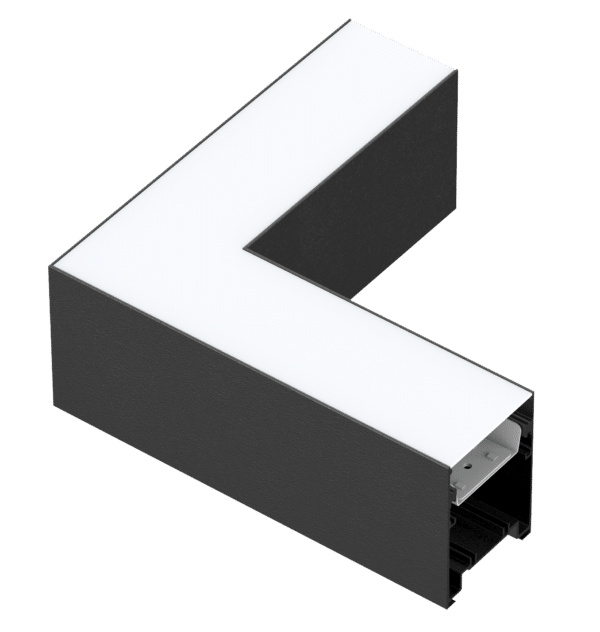

Model (L): LL-CON-L-B

Model (T): LL-CON-T-B

Model (Y): LL-CON-Y-B

White Models

Model (X): LL-CON-X-W

Model (L): LL-CON-L-W

Model (T): LL-CON-T-W

Model (Y): LL-CON-Y-W

Features:

  • Designed to be used with our standard lengths to create shapes
  • 3 colours in one: 3000K, 4000K, 5000K (switch select)
  • 110°Beam Angle
  • Aluminium base with PC diffuser
  • IP20 housing





Colour Temperature (3CCT) 3000K-4000K-5000K
Power Requirement 220~240VAC
Beam Angle 110°
Trim Colour Black (-B) or White (-W)
Model LL-CON-X
Watt 15w
Lumens 1350~1600lm
Dimensions 343 x 343 x 76mm
Model LL-CON-L
Watt 10w
Lumens 950~1150lm
Dimensions 200 x 200 x 76mm
Model LL-CON-T
Watt 15w
Lumens 1100~1350lm
Dimensions 343 x 200 x 76mm
Model LL-CON-Y
Watt 15w
Lumens 1100~1350lm
Dimensions 326 x 282 x 76mm
