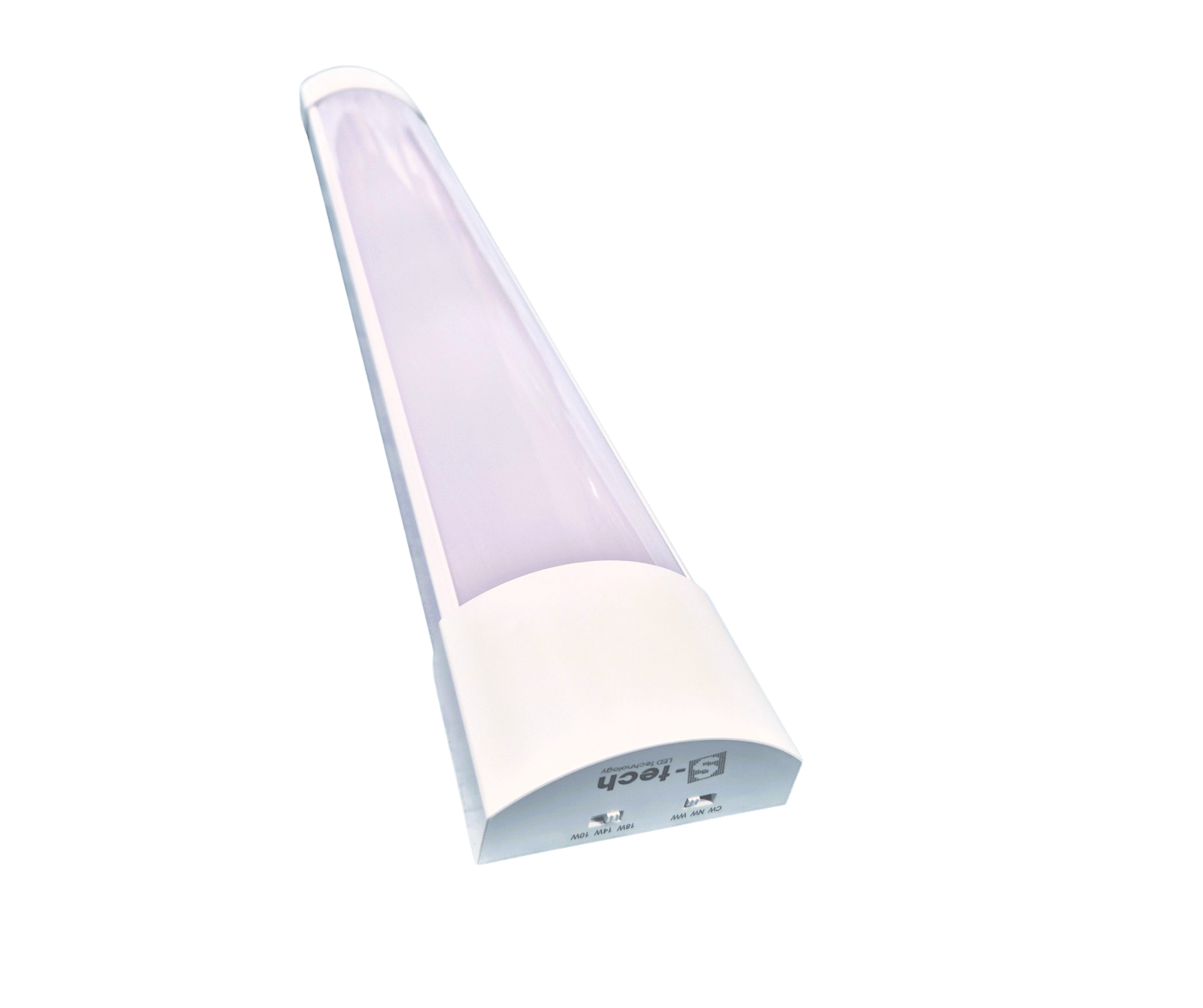

SMD 2FT Indoor Sensor & Emergency LED Batten
The S-Tech SMD 2FT Indoor Sensor & Emergency Batten (SMD-2FT-3C-ME) combines maintained emergency backup with an optional built-in microwave sensor, providing reliable illumination during normal operation and essential light during power outages.
The microwave sensor can be enabled or disabled according to your requirements. Sensor settings are easily adjustable via dip switches, eliminating the need for a remote control. With latest Li-Ion battery technology and smart charging controllers, this batten ensures light is available in critical moments while still offering energy-efficient motion-activated dimming.
Product Features
Model: SMD-2FT-3C-ME
-
Maintained Emergency Fitting with optional Microwave Sensor
-
3 Colour Adjustable: 4000K/5000K/000K
-
Built-in microwave sensor with 3-step dimming: On – Dim – Off
-
Sensor configurable via dip switch (no remote required)
-
Sensor can be disabled for normal emergency batten operation
-
Lumen Output: 2241–2286lm
-
Centre or side cable entry, 20mm knock-outs for continuous fixing
-
Input: 220–240VAC
-
Beam Angle: 120°
-
Polycarbonate opal diffuser
-
Powder-coated steel base
-
IP20 rated housing
-
Dimensions: 600 x 65 x 60mm
Default Factory Settings:
-
CCT: 4000K
-
Sensor Detection Area: 100%
-
Hold Time: 60 seconds
-
Daylight Sensor: Disabled
-
Standby DIM Level: 20%
-
Standby Period: Infinity
Functionality: The batten remains at 20% brightness day and night, switching to 100% brightness for 60 seconds when motion is detected. Multiple sensor settings are available via the specification sheet.
